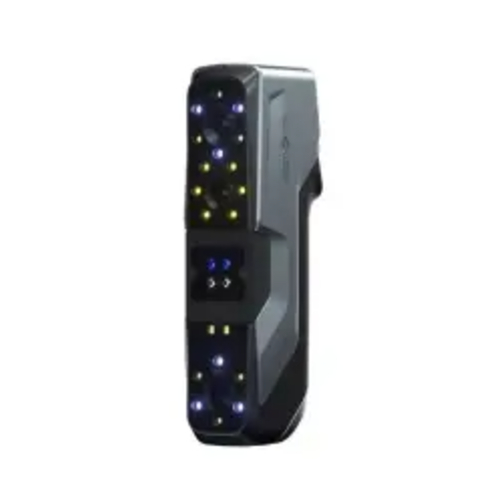

3DeVOK MT

3DeVOK MT

by
SCANOLOGY

The 3DeVOK MT is a professional-grade handheld 3D scanner utilizing a hybrid triple-light architecture of blue lasers and infrared light. It is engineered for high-precision industrial tasks and versatile human body scanning, offering marker-free operation across diverse materials and environments.

Overview

The 3DeVOK MT is a professional handheld 3D scanner that bridges the gap between industrial metrology and versatile creative applications. It features a unique triple-light source system consisting of 34 blue laser lines for precision, 22 infrared laser lines for dark surfaces, and an infrared speckle mode for rapid large-area capture. This hybrid approach allows engineers and digital artists to digitize everything from small mechanical components to full human bodies with industrial-grade accuracy reaching up to 0.04mm.

Fabricators and researchers value the MT for its ability to handle challenging surfaces like black clothing or shiny metallic parts without requiring developers to apply developer spray. Unlike entry-level alternatives, it offers advanced hybrid alignment that combines geometry, texture, and marker data to maintain tracking on featureless surfaces. This adaptability, combined with a massive 1100mm x 1000mm field of view in speckle mode, makes it a highly efficient tool for automotive customization and heritage preservation projects.

Review

What We Like

Triple-light system adapts to various materials without needing messy scanning sprays
High-speed data capture reaching 4,500,000 points per second in infrared mode
Marker-free scanning significantly reduces setup time for large-scale objects
Exceptional accuracy of 0.04mm provides reliable data for industrial reverse engineering
Integrated eye-safe Class 1 infrared laser allows comfortable full-body human scanning

Areas for Improvement

Heavy hardware requirements necessitate high-end laptop with RTX 3060 or better
Wired USB 3.0 connection can be cumbersome without purchasing optional Airgo handle
Limited support for custom scanning modes within the three default factory presets
Steep learning curve for beginners to master hybrid alignment across complex geometries
Physical weight of 620g may cause fatigue during very long scanning sessions

Disclaimer

The 3DeVOK MT utilizes Class 2 blue laser lines and Class 1 infrared light sources; users must avoid direct ocular exposure to the blue laser during operation. Ensure the target object does not exceed the 1500mm maximum working distance to maintain tracking stability. Refer to the official SCANOLOGY 3DeVOK MT User Manual for specific calibration procedures and electrical safety guidelines.

Performance Analysis

Speed

4.5M points/sec

9/10

Resolution

Fine 0.05mm spacing

8/10

Ease of Use

Professional software required

6/10

Portability

Lightweight handheld frame

8/10

Value for Money

Strong professional features

7/10

Software Quality

Robust real-time meshing

8/10

Object Size Range

Wide 0.05m to 5m

9/10

Scanning Accuracy

Industrial 0.04mm precision

9/10

Tech Specs

Scanning Technology
Laser Triangulation, Structured Light, H
Light Source Type
BlueLED, Infrared, VCSEL
Scanner Type
Handheld
Accuracy (mm)
0.04 mm
Resolution (mm)
0.05 mm
Minimum Field of View (mm)
140 mm
Maximum Field of View (mm)
1100 mm
Minimum Working Distance (mm)
150 mm
Maximum Working Distance (mm)
1500 mm
Scan Depth (mm)
1350 mm
Points Per Second
4500000 p/s
Frames Per Second
70 f/s
Color Capture
Markerless Tracking
Multi Object Tracking
Auto Alignment
Calibration Mode
Color Texture Mapping
Anti Shake
Face Safe
Re-scan Mode
Design Awards
Texture Resolution
24-bit RGB
Tracking Mode
Hybrid Alignment, Marker-based, Texture
Typical Object Size (mm)
50-5000
Output Formats
OBJ, STL, PLY, ASC, MK2, TXT
Real Time View
Noise Filtering
Mesh Post Processing
Auto Model Repair
Stitching Mode
CAD Export Support
Mobile Support
Firmware Updates
Connectivity
USB 3.0
Software Compatibility
Win10, Win11, 3DeVOK Studio, Geomagic De
License Model
Free lifetime
Length (mm)
215 mm
Width (mm)
73 mm
Height (mm)
53 mm
Power Consumption (W)
60 W
Input Voltage
12V 5A DC
Port Type
USB 3.0
Temperature Range (°C)
0–40°C
Humidity Range (%)
10–90%
Included Accessories
3D Scanner, Calibration Board, USB 3.0 D
