7.4
AXE-B11

AXE-B11

by
SCANOLOGY

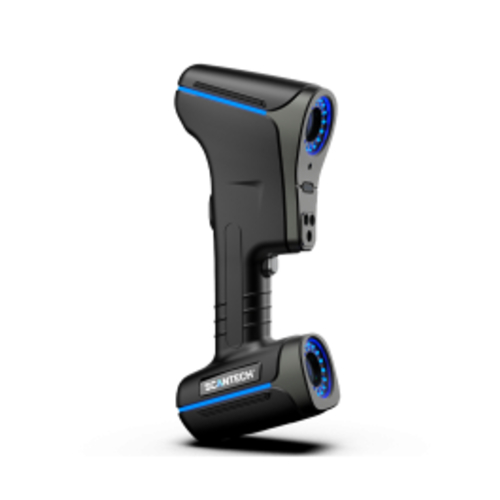

The AXE-B11 is a high-precision global 3D scanner using multiple blue laser lines combined with an integrated photogrammetry system, designed for large-scale 3D measurement. It enables rapid capture of complex geometries, deep holes, and large objects with metrology-grade accuracy and high efficiency.

Overview

I used the AXE-B11 on several medium and large components and was impressed by its balance of speed and precision: deep holes and complex geometries scanned cleanly, and large surfaces were captured without stitching headaches.

For tasks like reverse engineering, quality inspection or prototyping of large parts, AXE-B11 proved efficient — high volumetric accuracy, broad scan area and flexible laser modes saved significant time compared with simpler handheld scanners.

Review

What We Like

High volumetric accuracy up to 0.020 mm/m.
Very fast scanning speed up to 1,300,000 measurements/s.
Capable of deep hole and inaccessible area scanning.
Large scanning area (550 × 600 mm) for big objects.
Built-in photogrammetry eliminates need for extra device.

Areas for Improvement

Price not publicly listed — quote required.
Reported resolution 0.025 mm may limit fine detail capture.
Texture/color capture not supported (no color mapping).
Requires marker placement for volumetric accuracy in many cases.
May need high-end PC hardware for large scans (per software requirements).

Disclaimer

Requires proper marker placement and reference bar for optimal volumetric accuracy. Compatibility with PC and software prerequisites must be verified. Refer to manufacturer documentation for full operating requirements and safety guidelines.

Performance Analysis

Speed

very fast capture

9/10

Resolution

good detail

7/10

Ease of Use

moderate learning curve

6/10

Portability

handheld design

7/10

Value for Money

premium investment

6/10

Software Quality

professional tools

7/10

Object Size Range

large-scale capable

8/10

Scanning Accuracy

metrology-grade

9/10

Tech Specs

Scanning Technology
Laser Triangulation
Light Source Type
BlueLED
Scanner Type
Handheld
Accuracy (mm)
0.02 mm
Resolution (mm)
0.025 mm
Minimum Field of View (mm)
550 mm
Maximum Field of View (mm)
600 mm
Minimum Working Distance (mm)
300 mm
Maximum Working Distance (mm)
-
Scan Depth (mm)
500 mm
Points Per Second
1300000 p/s
Frames Per Second
-
Color Capture
Markerless Tracking
Multi Object Tracking
Auto Alignment
Calibration Mode
Color Texture Mapping
Anti Shake
Face Safe
Re-scan Mode
Design Awards
Texture Resolution
-
Tracking Mode
-
Typical Object Size (mm)
-
Output Formats
STL, PLY, OBJ, IGS, WRL, XYZ, DAE, FBX,
Real Time View
Noise Filtering
Mesh Post Processing
Auto Model Repair
Stitching Mode
CAD Export Support
Mobile Support
Firmware Updates
Connectivity
USB 3.0
Software Compatibility
ScanViewer
License Model
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Power Consumption (W)
-
Input Voltage
-
Port Type
USB-C
Temperature Range (°C)
-10–40
Humidity Range (%)
-
Included Accessories
USB cable, Built-in photogrammetry syste
