7.3
AXE-G7

AXE-G7

by
SCANOLOGY

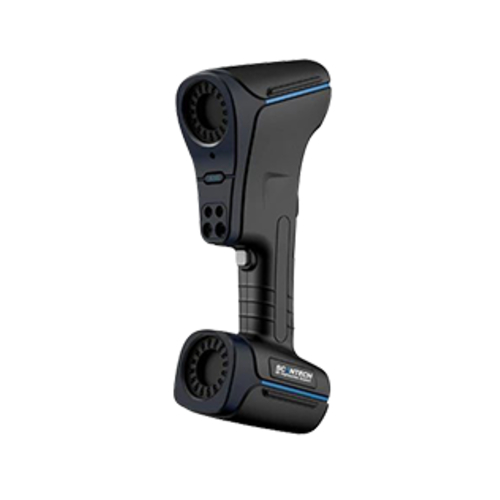

The 3D Scantech AXE-G7 is a professional handheld 3D laser scanner designed for high-precision measurement of medium to large-scale objects. Using laser triangulation technology with multiple red laser crosses, it delivers metrology-grade accuracy and high-speed data capture without requiring external photogrammetry systems. Its large scanning area and volumetric accuracy make it suitable for industrial inspection, reverse engineering, and complex surface digitization.

Overview

The 3D Scantech AXE-G7 is a handheld industrial 3D scanner built around laser triangulation technology, designed for capturing large-scale objects with high precision. Equipped with multiple red laser crosses and a wide scanning area, it enables accurate measurement of complex geometries without relying on external photogrammetry systems. It is primarily targeted at engineering teams, quality control departments, and manufacturing environments handling medium to large components.

What sets the AXE-G7 apart is its ability to combine speed and volumetric accuracy in a single device, achieving up to 800,000 measurements per second while maintaining 0.02 mm precision. Users value its reduced reliance on markers and its efficiency when scanning large surfaces or deep cavities. Compared to similar scanners, it offers a larger field of view and fewer setup requirements, making it practical for time-sensitive industrial workflows.

Review

What We Like

Captures up to 800,000 measurements per second for fast workflows
Achieves 0.02 mm accuracy suitable for industrial inspection
Large 550 × 500 mm scan area reduces repositioning time
Single-line laser mode improves deep hole scanning precision
Requires fewer markers than typical handheld scanners
Handles reflective and complex surfaces without spray preparation

Areas for Improvement

Requires wired USB connection limiting mobility during scanning
Initial setup and calibration require trained operator knowledge
No built-in color texture capture for visual applications
Software compatibility issues reported in earlier versions
Pricing not transparent and requires direct supplier contact
Not optimized for small detailed objects below industrial scale

Disclaimer

The AXE-G7 uses Class II red laser crosses with a 300 mm working distance and requires proper handling to avoid prolonged direct eye exposure during operation. Its performance can be affected by improper marker placement or environmental lighting conditions. Always follow the safety procedures outlined in 3D Scantech’s official AXE series user manual.

Performance Analysis

Speed

800k pts/sec

9/10

Resolution

0.1 mm detail

7/10

Ease of Use

requires training

5/10

Portability

handheld design

7/10

Value for Money

industrial pricing

6/10

Software Quality

functional but basic

6/10

Object Size Range

large objects optimized

9/10

Scanning Accuracy

0.02 mm precision

9/10

Tech Specs

Scanning Technology
Laser Triangulation
Light Source Type
LaserDiode
Scanner Type
Handheld
Accuracy (mm)
0.02 mm
Resolution (mm)
0.1 mm
Minimum Field of View (mm)
420 mm
Maximum Field of View (mm)
550 mm
Minimum Working Distance (mm)
300 mm
Maximum Working Distance (mm)
450 mm
Scan Depth (mm)
500 mm
Points Per Second
800000 p/s
Frames Per Second
-
Color Capture
Markerless Tracking
Multi Object Tracking
Auto Alignment
Calibration Mode
Color Texture Mapping
Anti Shake
Face Safe
Re-scan Mode
Design Awards
Texture Resolution
-
Tracking Mode
Marker-based
Typical Object Size (mm)
200–3000
Output Formats
PLY, XYZ, DAE, FBX, MA, OBJ, ASC, STL
Real Time View
Noise Filtering
Mesh Post Processing
Auto Model Repair
Stitching Mode
CAD Export Support
Mobile Support
Firmware Updates
Connectivity
USB 3.0, Ethernet
Software Compatibility
ScanViewer, Windows
License Model
-
Length (mm)
-
Width (mm)
-
Height (mm)
-
Power Consumption (W)
-
Input Voltage
-
Port Type
USB 3.0
Temperature Range (°C)
-10–40°C
Humidity Range (%)
-
Included Accessories
Carrying case, Markers, Gigabit LAN cabl
