A few years ago, I sat in a design review where a titanium orthopedic implant had just failed fatigue testing - again. The geometry was sound. The FEA checked out. But the build process? Chosen in haste. The team had selected a Powder Bed Fusion route based on lead time and vendor familiarity, not on microstructure or residual stress profile. It cost them six months.
If you're managing aerospace brackets or cobalt chrome spinal cages, you already know the stakes. Dmls vs Ebm isn't a marketing comparison - it's a metallurgical decision with regulatory, mechanical, and economic consequences.
Direct Metal Laser Sintering (DMLS) and Electron Beam Melting (EBM) both belong to the Powder Bed Fusion family. Both build dense metal parts layer by layer. Both can process Ti6Al4V and CoCr with properties that rival wrought material. And yet, the way they deliver those properties - thermal history, cooling rates, surface morphology, defect distribution - differs enough to make one ideal and the other risky, depending on your spec.
This guide unpacks that difference with metrics that matter: tensile strength, elongation, roughness, porosity, throughput, and cost per cubic centimeter.

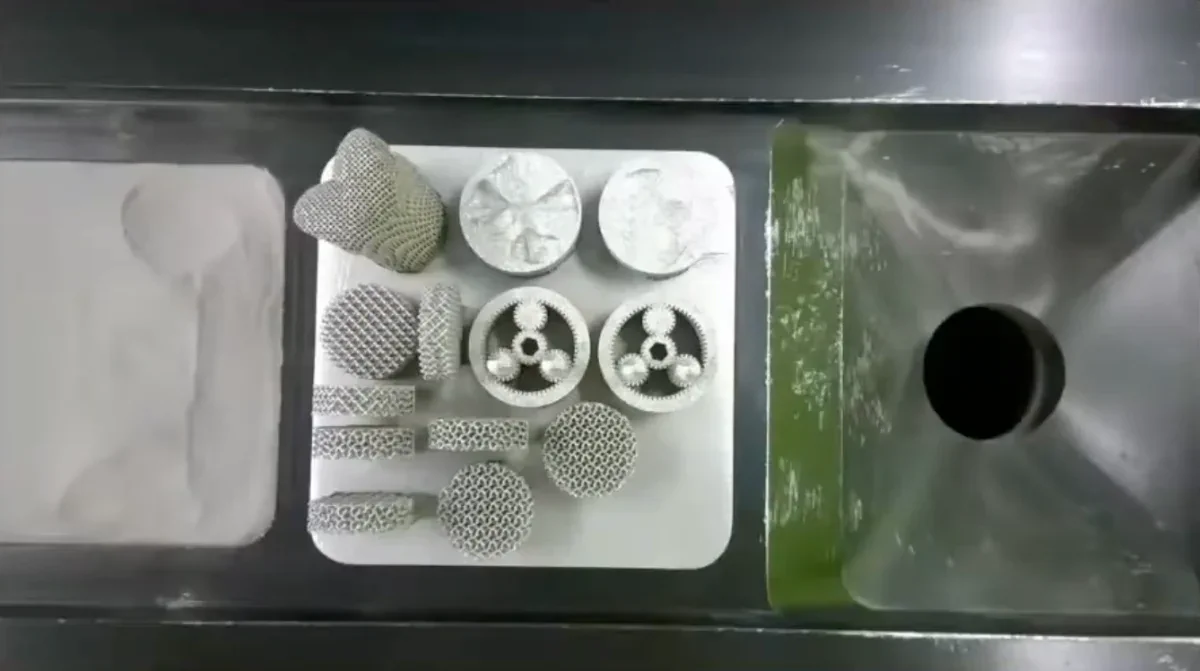

Credit (c) YouTube: Orthopaedic Research SocietyThis image displays metal parts created using powder bed fusion, highlighting the intricate lattice structures achievable with DMLS and EBM technologies. These parts exemplify the precision and complexity possible in modern 3D metal printing.
Rise of Powder Bed Fusion Techs
Metal AM has moved from lab curiosity to flight hardware in less than two decades. GE's fuel nozzles, spinal implants with trabecular lattices, lightweight aerospace brackets - most rely on Powder Bed systems. Laser-based systems (DMLS, SLM, Laser Sintering, Laser Melting) dominate installations globally. EBM holds a smaller but strategically important footprint, especially in titanium-heavy sectors.
Guide Roadmap
We'll walk through how DMLS actually works, how EBM differs at the beam-material interaction level, then compare hard data. If you want broader context beyond just these two, Deepen your understanding with our detailed powder bed fusion overview covering broader PBF technologies beyond just DMLS and EBM. And if you're onboarding a new team member, New to the field? Start with our beginner resource on what is 3D printing to build foundational knowledge before diving into metal processes.

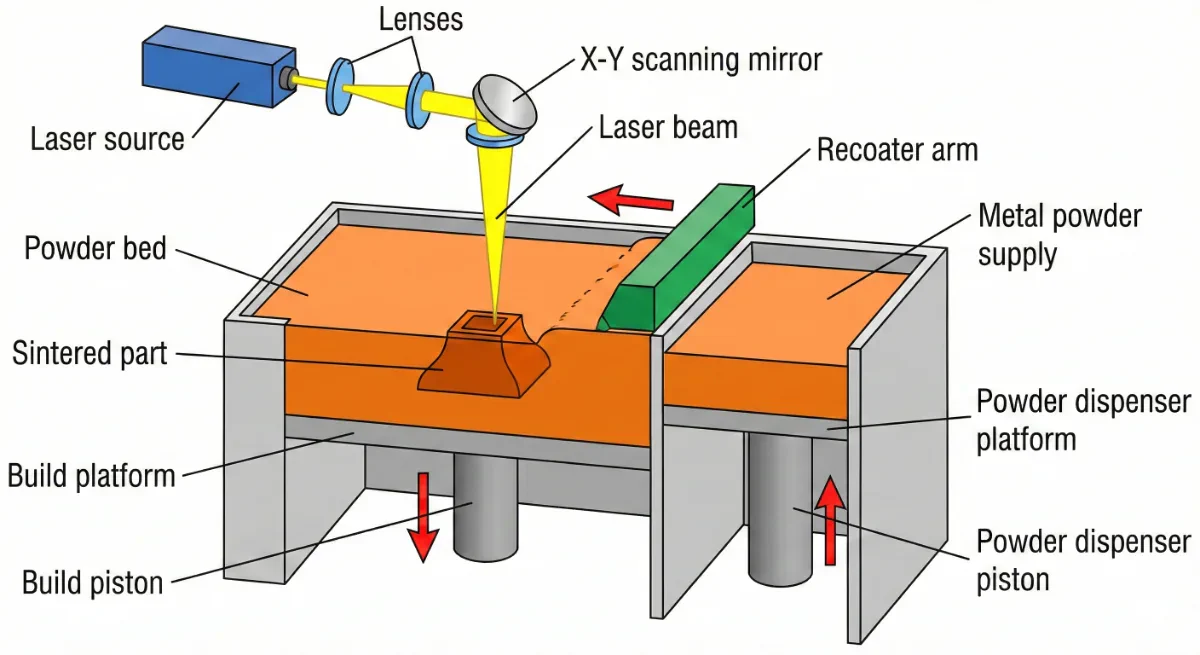

Credit (c) Pick3DPThis diagram illustrates the Direct Metal Laser Sintering (DMLS) process, highlighting key components like the laser source, recoater arm, and powder bed. Understanding these elements is crucial for comparing DMLS with Electron Beam Melting (EBM) in powder bed fusion technologies.
Let's get into the mechanics.
Exploring DMLS Process Fundamentals
DMLS is often described as "laser sintering," but in practice, most modern systems operate in a regime closer to full Laser Melting. The fiber laser - typically 200-500 W in mid-range machines, up to 1 kW in high-productivity systems - scans across a thin Powder Bed under an inert argon atmosphere.
The goal is full density. And when dialed in correctly, you'll see >99.5% density in Ti6Al4V.
1DMLS Layer-by-Layer Workflow
Here's what actually happens during a build:
- A recoater blade spreads a 20-60 micron layer of metal powder.
- The laser scans the cross-section, locally melting the powder.
- The melt pool solidifies rapidly - cooling rates often exceed 10⁴-10⁶ K/s.
- The build platform lowers, and the cycle repeats.

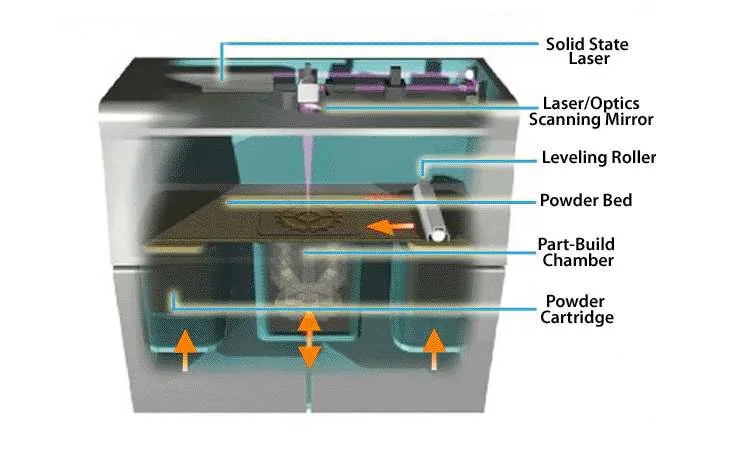

Credit (c) whiteclouds.comThis diagram illustrates the key components of a DMLS machine, including the laser and powder bed, crucial for precision in metal 3D printing.
Those cooling rates are the secret sauce and the headache.
Rapid solidification yields fine martensitic microstructures in titanium, boosting as-built tensile strength (often 1100-1200 MPa for Ti6Al4V). But it also introduces residual stress. Anyone who's pulled a tall, thin-walled bracket off a plate only to see it curl understands this firsthand.
That's why stress-relief heat treatments are standard. HIP (Hot Isostatic Pressing) may follow, especially for flight-critical components where internal porosity tolerance is near zero.
The inert gas environment - argon or nitrogen depending on alloy - prevents oxidation. Oxygen pickup in titanium must be tightly controlled; even 0.2% shifts can embrittle parts.
One underappreciated detail: scan strategy. Chessboard patterns, stripe scanning, contour passes - these affect thermal gradients and anisotropy. You can often tune elongation at break by 2-4% just by modifying scan rotation between layers.
2Supported Metal Alloys
DMLS systems excel in material flexibility. You'll commonly see:
- Ti6Al4V (Grade 23 for medical)
- Inconel 718 and 625
- AlSi10Mg
- CoCrMo
- Maraging steel

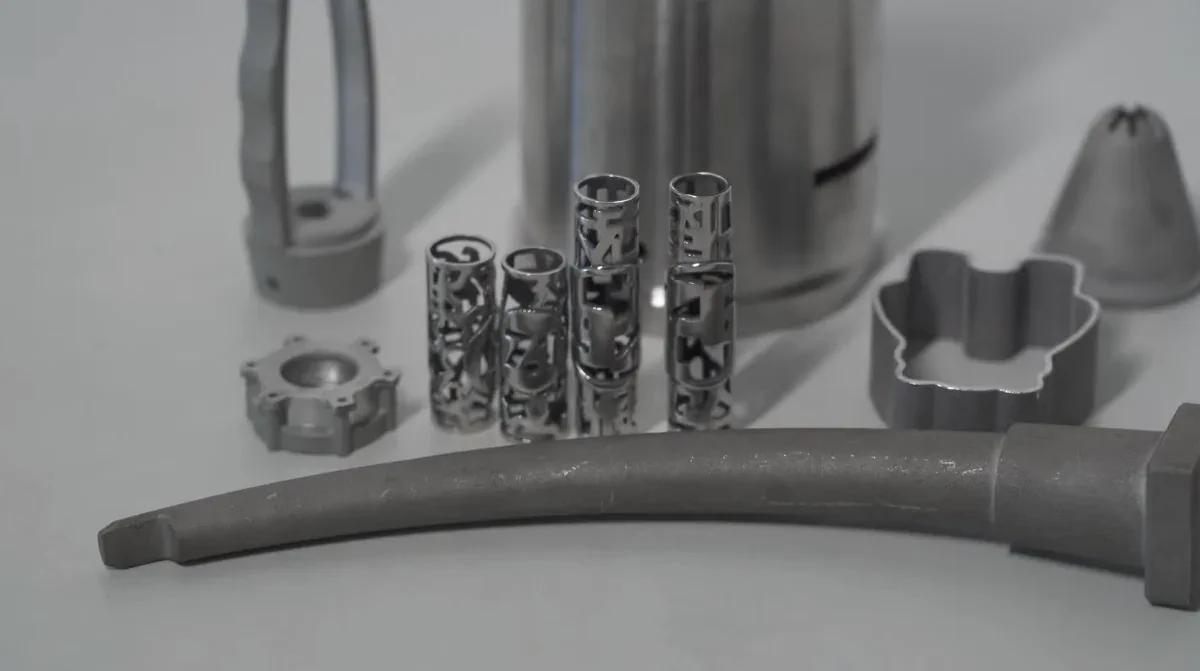

Credit (c) YouTube: HLH RapidA collection of metal parts produced via powder bed fusion, highlighting the precision and complexity achievable with DMLS and EBM technologies.
In aerospace, Inconel 718 via DMLS regularly hits 1250 MPa UTS after aging treatment. For orthopedic implants, porous lattice structures printed in Ti6Al4V enable bone ingrowth without secondary machining.
If alloy selection is driving your Dmls vs Ebm evaluation, compare powder chemistry, flowability, and particle size distribution carefully. Subtle PSD differences influence packing density and laser absorptivity. To align strength, density, and budget constraints, use the 3D Printing Materials Comparison tool to benchmark powder options side by side.
Before moving on, a quick clarification: While SLM shares laser technology similarities with DMLS, check our guide on DMLS vs SLM differences for nuanced metal printing insights. The naming overlaps, but parameter windows and vendor ecosystems vary more than marketing suggests.
Breaking Down EBM Mechanics
EBM approaches the same Powder Bed problem from a different angle - literally and thermodynamically.
Instead of a laser in argon, EBM uses a high-energy electron beam in a vacuum chamber. The beam is generated by heating a tungsten filament, then accelerated and focused using electromagnetic coils. Power levels often exceed 1 kW, and because electrons carry charge, they can be deflected rapidly without moving mirrors.
1EBM Build Environment
The vacuum isn't optional. Electrons scatter in air; they need low pressure (around 10⁻⁵ mbar) to maintain beam coherence.
That vacuum does two important things:
- It eliminates oxidation almost entirely.
- It enables high build temperatures.
Unlike DMLS, which typically runs near room-temperature substrate conditions, EBM preheats the entire Powder Bed - often to 600-800°C for titanium. This preheat reduces thermal gradients dramatically.
Lower gradients mean lower residual stress. It's common to remove EBM titanium parts from the plate with minimal distortion and sometimes no stress-relief cycle required. That's not trivial when you're printing thick-walled aerospace lugs.
2Reactive Metal Handling
EBM shines with reactive alloys. Ti6Al4V is the poster child, but gamma titanium aluminide (TiAl) components for low-pressure turbine blades are a standout example.
TiAl is notoriously brittle during processing. The elevated build temperature in EBM keeps it above its ductile-to-brittle transition longer during solidification. That stability is why several aerospace OEMs selected EBM for TiAl blades when DMLS struggled with cracking.
Microstructurally, EBM titanium often forms a lamellar alpha-beta structure instead of the martensitic alpha prime typical in as-built DMLS. The result? Slightly lower as-built tensile strength (around 900-1050 MPa), but often higher elongation without post-processing.
If your certification path values ductility and low residual stress over ultra-fine feature resolution, EBM deserves serious consideration.
For additional laser vs electron beam context, explore the SLM vs EBM guide that complements this DMLS vs EBM analysis.
Direct Comparison: DMLS vs EBM Metrics
At some point, philosophy gives way to spreadsheets.
Here's a high-level comparison that reflects real-world averages for Ti6Al4V builds in DMLS vs EBM systems:
| Metric | DMLS (Laser-Based) | EBM (Electron Beam) |
|---|---|---|
| Energy Source | Fiber laser (200-1000 W typical) | Electron beam (>1000 W typical) |
| Build Atmosphere | Inert gas (argon or nitrogen) | High vacuum (~10⁻⁵ mbar) |
| Layer Thickness | 20-60 µm | 50-100 µm |
| Powder Particle Size | ~15-45 µm | ~45-106 µm |
| As-Built Density | >99.5% | 99-99.8% |
| Surface Roughness (Ra) | 8-15 µm | 20-35 µm |
| Residual Stress | High (stress relief required) | Low to moderate (often minimal distortion) |
| Cooling Rate | Very high (10⁴-10⁶ K/s) | Lower due to elevated build temperature |
| Microstructure (Ti6Al4V) | Fine martensitic α′ (as-built) | Lamellar α+β structure |
| Ultimate Tensile Strength (As-Built) | ~1100-1200 MPa | ~900-1050 MPa |
| Elongation (As-Built) | Moderate (often improves after heat treatment) | Typically higher without extensive post-processing |
| Minimum Feature Size | ~150-200 µm | ~300-400 µm |
| Build Rate (Bulk Sections) | Moderate | Often faster for large cross-sections |
| Post-Processing Needs | Stress relief + often HIP | HIP common; stress relief sometimes unnecessary |
| Best Fit Applications | Fine lattice implants, thin-walled aerospace brackets | Thick titanium structures, TiAl turbine blades |
1Quality and Performance Specs
For aerospace brackets, DMLS often wins on fine detail and thin walls. Need lattice struts under 300 microns? Laser-based systems handle that better.
For thick titanium components where distortion control matters, EBM's elevated build temperature can reduce scrap rates significantly. In fatigue-critical parts, both processes can achieve comparable endurance limits after HIP, but DMLS may require more aggressive post-processing to relieve stress-induced microcracks.
An interesting nuance: anisotropy. Both processes exhibit directional properties, but EBM's thermal profile sometimes yields more uniform Z-direction elongation in titanium.

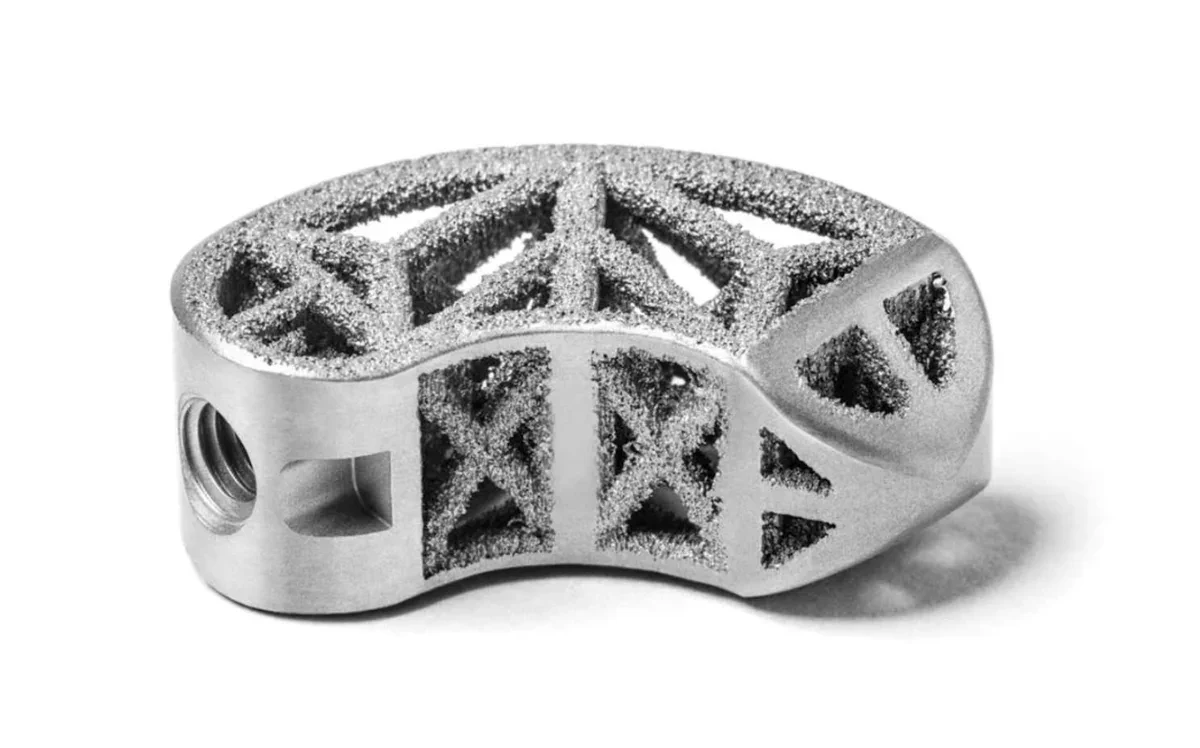

Credit (c) neway3dp.comThis metal component highlights the intricate lattice structure achievable with DMLS and EBM technologies, crucial for lightweight and durable designs in aerospace and medical applications.
2Economic Breakdown
Machine costs vary by vendor, but expect:
- DMLS systems: $500k-$1.5M
- EBM systems: Similar or slightly higher due to vacuum infrastructure
Powder costs for Ti6Al4V are comparable per kilogram, but EBM's coarser powder can sometimes be recycled more easily due to less spatter contamination.
Operationally, DMLS may incur higher post-processing costs (stress relief, support removal), while EBM can demand more aggressive machining to clean up rough surfaces.
If cost opacity is frustrating your procurement team, model it directly. The 3D Printing Cost Calculator lets you simulate DMLS vs EBM build economics based on geometry and material choice.
Curious about other powder processes? read the full SLA vs SLS comparison for insights into liquid vs powder bed fundamentals.
Choosing Powder Bed Tech for Projects
This is where Dmls vs Ebm becomes practical.
Start with three questions:
- What alloy dominates your portfolio?
- Are fine features or bulk structures more critical?
- What does your certification path require?
1Industry Examples
Orthopedic implant teams often lean toward DMLS. The finer Powder Bed, tighter beam control, and ability to print intricate porous lattices make it ideal for acetabular cups and spinal cages. Surface roughness can even aid osseointegration.

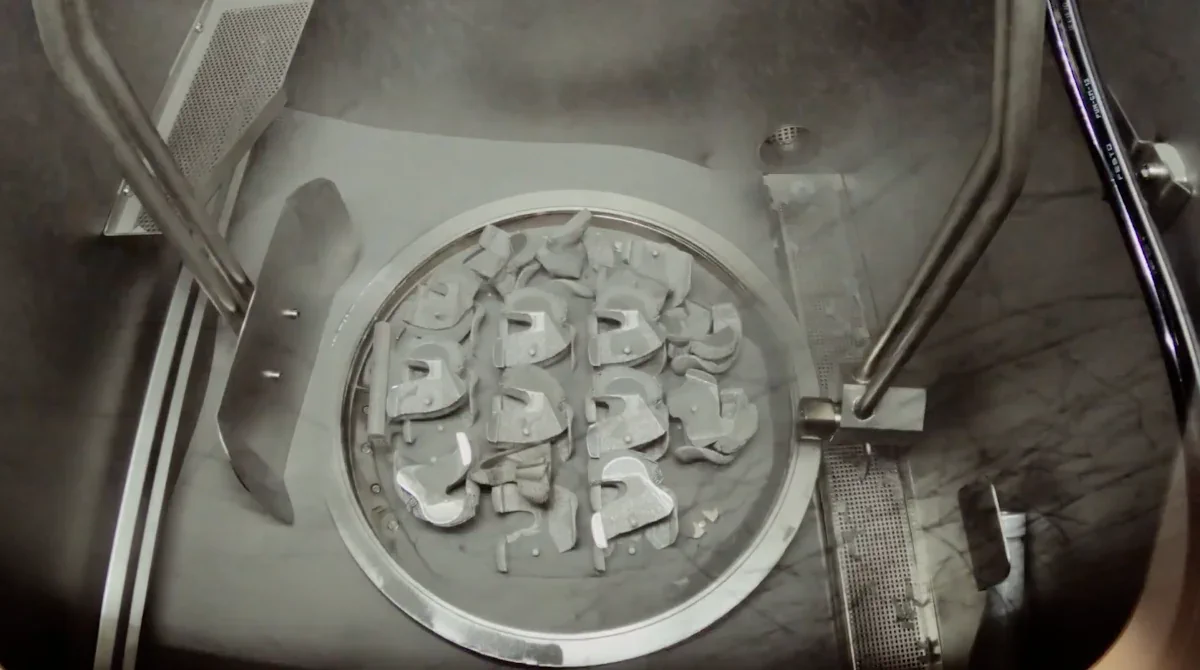

Credit (c) YouTube: orchidorthoA Direct Metal Laser Sintering (DMLS) chamber showcasing metal orthopedic implants on the build plate, highlighting the technology's precision in creating intricate medical devices.
Aerospace teams building TiAl turbine blades or thick titanium structural nodes frequently select EBM. Lower residual stress reduces warping risk in large cross-sections, and elevated build temperatures stabilize crack-prone alloys.
I've seen one aerospace supplier switch mid-program from DMLS to EBM after repeated distortion in a 40 mm-thick bracket. Scrap rates dropped from 18% to under 5%. The geometry didn't change - only the energy source and thermal environment did.
2Scaling Considerations
For prototyping intricate geometry, DMLS offers flexibility and broader vendor availability. For low-volume production of titanium-heavy components, EBM can deliver predictable dimensional stability.
Vendor ecosystem matters too. DMLS has a larger global installed base. If supply chain redundancy is critical, that may influence your decision more than microstructure alone.
If you're weighing laser versus electron beam in other contexts, For additional laser vs electron beam context, explore the SLM vs EBM guide that complements this DMLS vs EBM analysis.
Ultimately, the right answer depends less on branding and more on physics. Match thermal profile to alloy behavior. Match feature resolution to geometry. Match cost model to lifecycle volume.
DMLS vs EBM titanium parts - Source (Youtube@Spencer Wright)
Conclusion: Mastering Your Selection
The Dmls vs Ebm debate isn't about which technology is "better." It's about which thermal story your part needs.
DMLS gives you precision, finer resolution, and broad alloy flexibility - but demands respect for residual stress and post-processing discipline.
EBM offers elevated build temperatures, reduced distortion, and strong performance in reactive titanium systems - at the expense of surface finish and ultra-fine detail.
Before your next procurement cycle, do this: take one representative geometry, run mechanical requirements backward from certification specs, and map them to process-induced microstructure. Then model cost per cubic centimeter including post-processing, not just machine time.
That exercise alone will clarify more than any brochure.
Choose the energy source that aligns with your alloy, your geometry, and your compliance pathway. Get that right, and Powder Bed Fusion becomes a strategic advantage - not a six-month setback.
